Tajchs - artificial water reservoirs of Banská Štiavnica
![Location on map - Tajchs - artificial water reservoirs of Banská Štiavnica](/wptheme/themes_com/css/map_static_svk/map_static_svk_dark_bb.png)
Region: Banská Bystrica Region
District: Banská Štiavnica
Tourist location: Hont
World Heritage: UNESCO Cultural Heritage
District: Banská Štiavnica
Tourist location: Hont
World Heritage: UNESCO Cultural Heritage
![Tajchs (artificial water reservoirs) of Banská Štiavnica - Slovakia Tajchs (artificial water reservoirs) of Banská Štiavnica - Slovakia](/wpmedia/imagespublic/large/tajchs-artificial-water-reservoirs-of-banska-stiavnica-slovakia.jpg)
Tajchs are beautiful water reservoirs created by people and harmonically ingrown into the steep hills. Tajchs were the solution of “the first energy crisis” of mining and they saved mining in the whole region. The energy produced by water replaced the horse and man power, which wasn’t sufficient for draining mines. Before tajchs were created, the water had been drained by approximately 2000 people and as many horses.
In the 18th century, tajchs formed probably the most perfect water management system in Europe. In overall, they were able to collect 7 millions of cubic metres of water and distribute it to the places where it was necessary. The water was used for driving underground water pumps and machinery for processing iron ore, were the ore was crushed and washed. Residual water was used to drive mills.

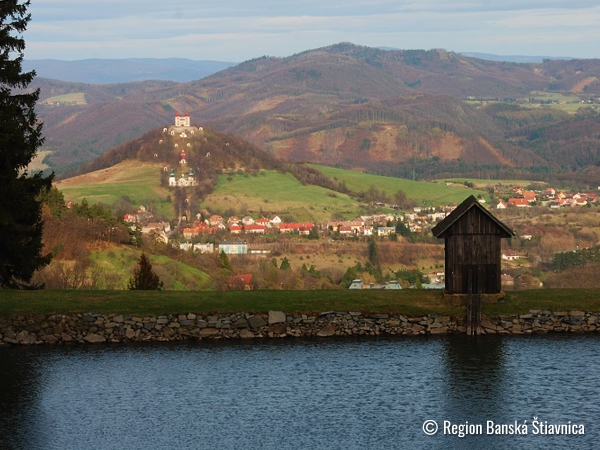

The water in a tajch was lead away by an underground tunnel; a “stopper” was controlled from a little hut built on a dam of the tajch, called “monk”. As there wasn’t any abundant stream in the area, tajchs were filled by rain water, collected by tens of kilometres of ditches. The technical solution of the complex structures still standing, as well as their management, deserve our admiration.
Building the dam required simultaneous work of hundreds, even thousands of men and women. They had to bring earth to the place and the dam was trampled by flocks of sheep shepherded there. The energy base of this system gave rise to the mining draining machinery, which became a model for other mining regions in the world. Tajchs is one of the reasons why Banská Štiavnica was included in the UNESCO’s World Heritage List.
Twenty-four tajchs picturesquely set in the nature remained up to now. Some of them are used for relaxation: swimming and rowing in summer, skating in winter. In spring and autumn they are a good place where to go for a walk to. Large Vodárenská (Veľká vodárenská tajch) and Klinger are easily accessible when walking from Banská Štiavnica. Počúvadlo lake - tajch (Počúvadlianske jazero tajch), Vindšachta and Richňava tajch in Štiavnické Bane and Kolpašský tajch in Banský Studenec are also suitable for families with children, as their sides are not so steep. Some parts of the ditch system were preserved, too. They are crossed by numerous pathways and cycle routes.
Artificial water reservoirs are enjoyable for fishers, too. There are mostly carp and trout fishing grounds here. Počúvadlo tajch has a mode “Catch and let go”.
History - how tajchs (artificial water reservoirs) were created
First water reservoirs were created as early as the beginning of the 16th century. Reservoir Veľká vodárenská tajch is situated just above Holy Trinity Square and serves as a resource of drinking water and water source in case of fires. However, more extensive construction of reservoirs began only thanks to the “energy crisis” in the first half of the 18th century.Mines used to be excavated manually in the past, with the help of a pick and a hammer, sometimes fire was used. In a year two people were able to excavate a tunnel of 7 metres in a rock. It is difficult to imagine in what speed they had to excavate hundreds of meters of tunnels. Thanks to the use of gun powder (since 1627) the speed of mining has increased.
As the depth of mines grew, underground water represented the biggest challenge. Even heritage mining tunnels led horizontally were not sufficient, as mines sloped down below their level. Manual pumping out by people and horses turning horse-whim was insufficient as well. The only additional known alternative of energy source was water, but there was a lack of water in the surroundings. Moreover, mines were in the mountains, so how to get water there? Rumour about these problems was spreading into the world and several inventors gathered to Štiavnica in order to construct a “magic machine”. They designed various, often very bizarre devices, but the situation did not improve. Debts of miners grew and profits decreased. Court Chamber in Vienna decided to close the mines.
The then engineer and constructor Matej Kornel Hell (1651 – 1743) opposed it vigorously. He developed a detailed plan for saving mining in the key mines; he proposed to build additional water reservoirs. His solution was nothing new, however because of the difficult geographic conditions and the acute shortage of water streams in the region, it was very daring. Nowadays it is clear that Hell was ahead of the then world water construction development thanks to his smartness and brilliance, but his proposal was rejected by the administration in Vienna. M.K.Hell fought his way with his proposal to the emperor Charles VI, who accepted his arguments and provided financial support for the plan. In three years M.K.Hell and his son Jozef Karol Hell completed the construction of the biggest water reservoir in those times, Veľká Vindšachta (1715). They increased the capacity of Evička and Spodná Vindšachta and finished the whole plan. The older Hell constructed and improved seven pumping devices in a genius way. With the help of these devices he quickly pumped out all the water from the mines which were flooded at that time. In this way, one person saved mining industry in the region of Štiavnica for other 150 years.
Hell’s construction was further developed by a brilliant mathematician, cartographer, geodesists and imperial and royal geometrician of central Slovak mining towns – Samuel Mikovíni (1686 – 1750). Mikovíni reconstructed and increased the walls of Hell’s reservoirs, designed and built new ones. He linked reservoirs into a system of water tunnels and so he enabled directing water to those places where it was necessary. He designed several kilometres long collecting and regulating ditches which were paved with stones. They led across the slopes of hills. In this way rain water was transferred to reservoirs. Thus, he completed entire water management system and solved the energy problem of Štiavnica mining up to the 20th century.
How tajchs (artificial water reservoirs) were built
In the location where a reservoir and a dam were to be built, slopes were cleared down to rock. All the old mining tunnels were identified; they were cleaned and filled with tight clay which was rammed. The basis of a dam was created by a waterproof sealing element. Three rows of strong oak poles woven with willow twigs were embedded and the walls, which were created in this way, were filled with clay. This was made denser and rammed for instance by sheep or goat herds running through it. Subsequently earth was brought to both sides of this element. The earth was strengthened with stones from the water side and supported by a stone wall, base, from the air side. The construction was done by hundreds to thousands of men as well as women, though separately.
Source: www.banskastiavnica.travel
